Resistance Welding

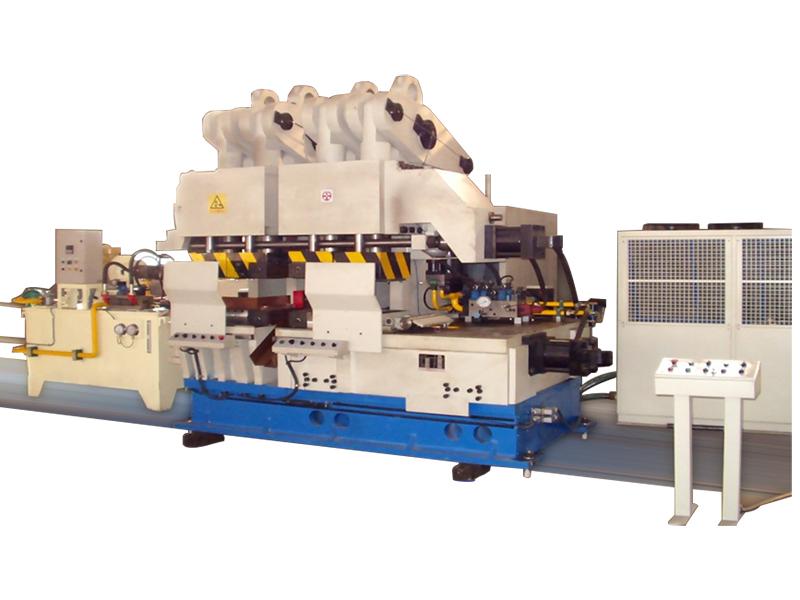

Rails Flash Butt Welding Equipment

Rails Flash Butt Welding Equipment
Contact Us
Material Rail Steel
Maximum cross section 1500mm²
Maximum clamping force 3600 KN
Clamping time 4-10s adjustable
Maximum upsetting force 1600 KN
Machine time(not including loading and unloading) 60-200 Second
distance between electrodes,Vertical 150-270 mm
distance between electrodes,Horizontal 135-215 mm
Vertical alignment ±5 mm
Working height 1060 mm
Ram stroke 80 mm
Rated capacity 1600 KVA
Flashing speed 0.2-8.0 KVA
Upsetting speed max. 200 mm/sec
Duty cycle 50 %
Secondary short circuit current 300 KA
Secondary rated current 120 KA
Inquiry Form

Mountain Welding is an established manufacturer of industrial production systems with more than three decades of experience in the design and production of resistance welding systems.

The company currently focuses on fully and semi-automatic shock absorber lines and rim wheel assembly lines, drawing on extensive experience serving customers across diverse industrial sectors.

In 1992, Mountain Welding started with one core fundamental technology: the welding machine.

Since then, Mountain Welding has expanded and manufactured more than 2,000 welders for the automobile, agriculture, household appliance, architecture, and railroad industries. This manufacturing depth reflects long-term capability in delivering production systems built for consistent quality, reliable operation, and strong production performance.

The company’s resistance welding systems are used in the production of shock absorbers, wheels, fuel tanks, ring gears, drive shafts, drive bearings, rear axles, and other critical components. With proven application across high-demand industrial environments, Mountain Welding has built its market presence through experience, equipment volume, and adoption in a wide range of end-use industries.
